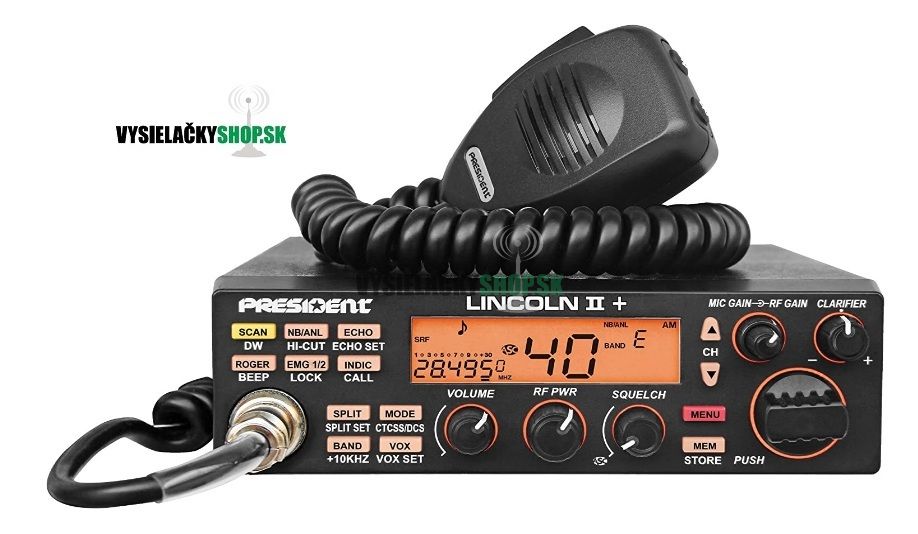

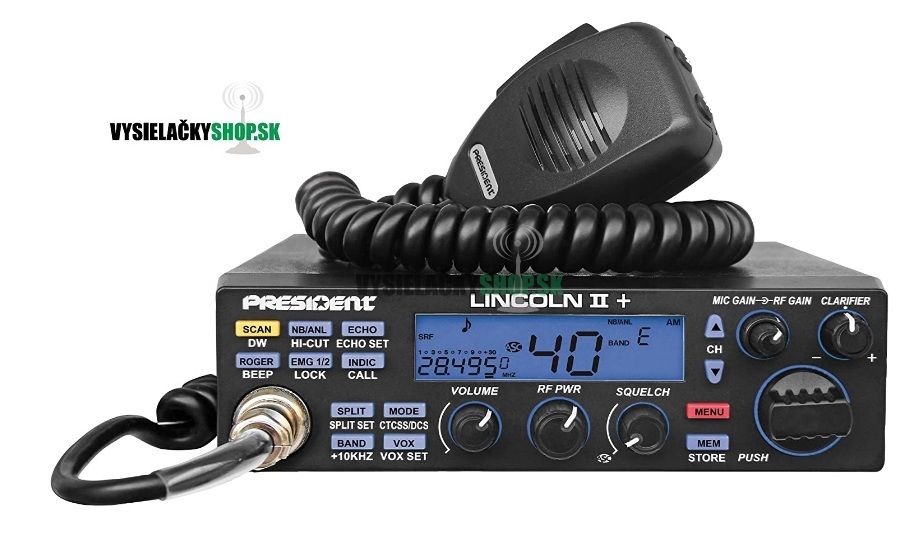

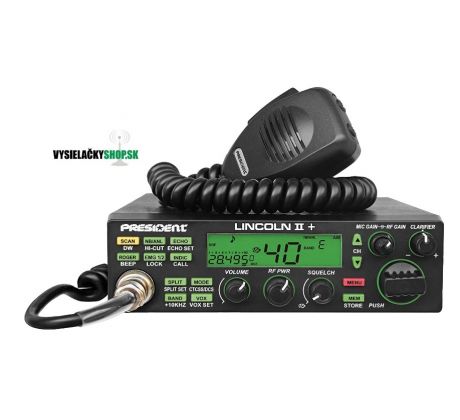

President Lincoln II SSB plus

Vlajkova lod od firmy president electronics s SSB modulaciou ktorá nahrádza vysielačku President Jacksson II a je skutočnou lahôdkou pre každého rádioamatéra.
Vysielačka Lincoln II + má rozsah 25-30MHz - celé pásmo CB & 10m & 12m.
Maximálny výkon je až 40W čo činí v spojení s SSB modulaciou bezkonkurečný dosah.
Samozrejmostou u tejto stanice je aj: VOX, PSV / RF meter, Power, Roger-beep, Mic a RF gain, kontinualne jemné ladenie frekvencie, ...
Vždy je dodávaná naj-aktualnejšia verzia tohto radioamaterskeho radia.

- General
Bands : 10
Modulation modes : AM/FM/LSB/USB/CW
Frequency ranges : from 25-30 MHz
CTCSS : 38 tones
DCS : 104 codes
Antenna impedance : 50 ohms
Power supply : 13.2 V
Dimensions H x W x D (in mm) : 52 x 170 x 250
Weight : 1.4 kg
Accessories supplied : power cord with fuse
1 microphone and its hanger
1 mounting bracket with fixing screws

- Transmission
Frequency allowance : +/- 300 Hz
Carrier power : 12 W AM / 28 W FM / 31 W USB-LSB / 12 W CW
Transmission interference : inferior to - 50 dBc
Audio response : 300 Hz to 3 kHz
Emitted power in the adj. channel : inferior to 20 µW
Microphone sensitivity : 3 mV
Drain : 6 A (with modulation)
Modulated signal distortion : 1.8 %

- ReceptionMaxi. sensitivity at 20 dB sinad : 0,5 ?V -110 dBm (AM)
0,35 ?V -116 dBm (FM)
0.28µV-118 dBm (USB/LSB/CW)
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : mini 0.2 ?V - 120 dBm
maxi 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 400 mA nominal, 600 mA max
